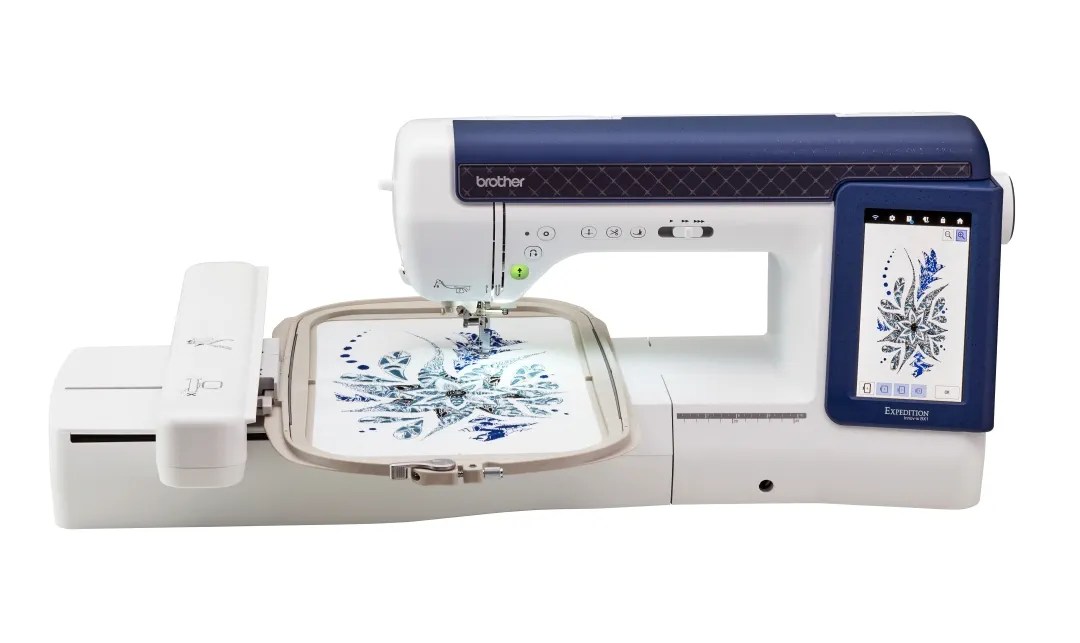

The Brother Expedition BX1 brings advanced sewing, quilting and single-needle embroidery together in one premium creative machine. Its generous 200 x 360mm embroidery field, 10-inch throat space, extensive built-in design library and dedicated fabric-control features make it a strong choice for ambitious home sewists who want one machine for garments, quilts, personalised gifts and decorative embroidery.
With 754 sewing stitches, 774 embroidery designs and wireless access to Brother’s creative ecosystem, the BX1 gives you plenty to explore without requiring separate sewing and embroidery machines. Innovative Curve Sewing Mode assists with curved seams, while the external guideline marker, pivot function and compact dual feed system support accurate, controlled sewing across a wide variety of projects.
View the Brother Expedition BX1 at Two Petals , or explore more Brother sewing and embroidery machines .
Why choose the Brother Expedition BX1?
- Sewing, quilting and embroidery in one machine:Â Move between garment construction, quilt piecing, free-motion work, decorative sewing and hoop embroidery without maintaining two separate machines.
- Industry-first Curve Sewing Mode:Â Presser-foot pressure changes in response to needle movement to help the fabric turn more smoothly and reduce puckering around curves.
- Large 200 x 360mm embroidery field:Â Create substantial designs for quilt blocks, jacket backs, cushions, wall hangings and other statement projects with less re-hooping.
- Extensive built-in library:Â Choose from 754 sewing stitches, 774 embroidery designs, 140 frame-pattern variations and 23 embroidery lettering fonts.
- External guideline marker:Â Projects an adjustable guide onto the fabric to assist with straight seams, edge stitching, parallel rows and decorative-stitch placement.
- Compact dual feed:Â Helps control multiple layers and challenging materials such as quilted fabric, vinyl, leather and synthetic leather.
- Wireless creative workflow:Â Connect with Brother Artspira, My Stitch Monitor and Design Database Transfer.
- On-screen editing:Â Arrange, combine, preview, resize and position embroidery elements from the colour touchscreen.
- Automatic convenience:Â Includes advanced needle threading, automatic thread cutting, automatic presser-foot functions, upper-thread and bobbin sensors, and a quick-set bobbin system.
Curve Sewing Mode for smoother turns
Curved seams can be demanding because the fabric must turn while continuing to feed evenly. The BX1’s Curve Sewing Mode changes presser-foot pressure in time with the needle movement. Pressure is reduced to make turning easier while the needle holds the fabric, then normal pressure returns as the fabric feeds forward.
The mode includes automatic pressure adjustment for the fabric being used, with fine-tuning available when a project needs more or less pressure. It is particularly useful for curved garment seams, rounded collars, bags, appliqué outlines and decorative stitching. Brother recommends testing the actual fabric and number of layers before beginning the finished project.
Precision guidance for sewing and embroidery
External guideline marker
The removable external guideline marker projects a visible line onto the fabric and can be adjusted using its slider and measurement scale. It can assist when sewing straight seams, maintaining an edge distance, aligning rows of decorative stitching or following marked construction lines. The scale supports both millimetres and inches.
Pivot and automatic presser-foot functions
The pivot function keeps the needle in the fabric while lifting the presser foot when sewing stops. This leaves both hands available to turn the work, align an appliqué edge or reposition a quilt block before continuing. Automatic presser-foot pressure and height adjustment further reduce the number of manual adjustments needed as fabric conditions change.
Compact digital dual feed
The compact dual feed system moves the upper fabric in coordination with the machine’s feed mechanism. Its feed amount can be fine-tuned through the settings screen, helping to keep quilt layers, slippery materials and fabrics with different surface characteristics aligned. Brother recommends using this foot at medium to low sewing speeds.
Creative sewing and quilting capability
The BX1 includes 754 sewing stitches, comprising 179 utility stitches and 575 decorative stitches. The selection supports everyday construction, finishing, quilting and embellishment, with features including multi-directional sewing, stitch tapering, mirror imaging, stitch combinations and Brother’s My Custom Stitch function.
- Up to 7mm stitch width and 5mm stitch length
- 14 buttonhole styles
- Five sewing lettering fonts
- Multi-directional sewing for wider decorative effects
- Automatic reverse or reinforcement stitching
- Automatic thread cutting
- Independent bobbin-winding motor
- Automatic drop feed
- Free-motion quilting support
- Knee-lifter operation
- Straight-stitch needle-plate capability
For quilters, the large throat space provides additional room to the right of the needle, while the included quilting-oriented functions support piecing, appliqué, free-motion stitching and decorative quilting. A stitch regulator is not listed as a standard included feature, so availability and compatibility of any optional Brother regulator should be confirmed before ordering.
Large-format embroidery without a separate machine
The 200 x 360mm maximum embroidery area gives the BX1 room for larger motifs, lettering arrangements and in-the-hoop projects. Published specifications list both a 130 x 180mm frame and a 200 x 360mm frame, providing a practical smaller hoop for everyday designs alongside the full-size embroidery field.
The 774 built-in embroidery designs include utility designs, motifs, dimensional appliqué ideas, couching designs, French-knot patterns, in-the-hoop projects and decorative frames. Twenty-three embroidery fonts support names, monograms, labels and personalised gifts.
Useful embroidery functions
- On-screen selection and editing of multiple patterns
- Move, rotate, resize, group and preview tools
- Character and lettering editing
- Repeated-pattern creation
- Two-point embroidery positioning
- LED embroidery position pointer
- Embroidery basting
- Thread-colour sorting
- End-colour and jump-stitch trimming
- Pattern-position checking before stitching
- Resume capability after interruption
- Embroidery couching and crochet-couching support
- Split-design support within the machine’s embroidery limits
Wireless design transfer and monitoring
The BX1 connects to a compatible 2.4GHz wireless network for design transfer, app features and machine updates. Wireless functions include:
- Brother Artspira:Â Browse compatible projects and designs, create or edit selected content on a mobile device, and transfer it wirelessly to the machine. Some Artspira content and functions may require a paid subscription or separate purchase and can vary by country.
- My Stitch Monitor:Â Check embroidery status from a compatible phone or tablet and receive notifications when the machine stops or needs attention. The machine and mobile device must be connected to the same wireless network.
- Design Database Transfer:Â Transfer compatible embroidery designs from a Windows computer without carrying files to the machine on a USB drive.
- Wireless machine updates:Â Download supported machine software updates through the wireless connection.
Brother currently lists Artspira support for Android 8.0 or later and iOS/iPadOS 15.0 or later. Compatibility can vary by device, operating-system version, app version and region.
USB and embroidery-file compatibility
The BX1 can read designs from a compatible USB flash drive as well as receive supported files wirelessly. Brother specifies FAT32-formatted USB flash drives and recommends a capacity of 32GB or less, although not every USB device is guaranteed to work.
- Embroidery formats:Â PES, PHC, DST and PEN
- Stitch-data formats:Â PMV, PMX and PMU
- Wireless computer transfer:Â Design Database Transfer or PE-DESIGN version 11 or later
- Machine embroidery memory:Â Up to 2MB or 20 stored embroidery patterns
- Pattern limit:Â Up to 500,000 stitches per stored embroidery pattern
A file format being readable does not guarantee that every downloaded design is suitable for the machine. Designs must fit within the 200 x 360mm embroidery field and should use appropriate stitch density, sequencing and stabilisation. DST files do not contain complete thread-colour information, so their colour sequence should be checked on screen before stitching.
Verified specifications
| Specification | Brother Expedition BX1 |
|---|---|
| Machine type | Computerised sewing, quilting and single-needle embroidery machine |
| Maximum embroidery area | 200mm wide x 360mm high |
| Included embroidery-frame sizes listed | 130 x 180mm and 200 x 360mm |
| Built-in embroidery designs | 774 |
| Embroidery lettering fonts | 23 |
| Frame-pattern variations | 140 |
| Built-in sewing stitches | 754: 179 utility and 575 decorative stitches |
| Sewing lettering fonts | 5 |
| Buttonhole styles | 14 |
| Maximum stitch width | 7mm |
| Maximum stitch length | 5mm |
| Sewing speed | 70 to 850 stitches per minute |
| Maximum embroidery speed | 850 stitches per minute |
| Touchscreen | 7-inch colour LCD touchscreen |
| Throat space | Approximately 10 inches |
| Wireless network | IEEE 802.11b/g/n on 2.4GHz |
| USB media | USB Type-A flash drive; FAT32; Brother recommends 32GB or less |
| Embroidery formats | PES, PHC, DST and PEN |
| Machine dimensions | Approximately 577mm wide x 285mm high x 310mm deep |
| Machine-only weight | Approximately 13.7kg |
| Dimensions with embroidery unit attached | Approximately 815mm wide x 524mm high x 310mm deep |
| Weight with embroidery unit attached | Approximately 17.5kg |
What can you make with the Brother BX1?
- Personalised clothing, jackets and workwear
- Monogrammed towels, bags and homewares
- Large embroidered quilt blocks
- Quilt labels and commemorative panels
- Curved garment seams, collars and shaped panels
- Appliqué and dimensional embroidery
- In-the-hoop gifts and accessories
- Decorative couching and yarn embellishment
- Free-motion quilting and thread painting
- Multi-directional decorative borders
- Cushions, table runners and wall hangings
- Small-batch personalised products for a home studio
Is the Brother BX1 right for you?
The BX1 is best suited to an experienced or developing sewist who wants advanced sewing and substantial embroidery capability in one machine. It is particularly appealing if you regularly alternate between garment sewing, quilting and embroidery but do not want a dedicated machine for every discipline.
Before purchasing, consider the permanent workspace needed for the embroidery unit and hoop movement. The machine is approximately 815mm wide with the embroidery unit attached, and additional clear space is required around the hoop. Buyers planning frequent production embroidery should also remember that the BX1 is a domestic single-needle machine, so each thread colour is changed individually.
Consider the BX1 if you want:
- One premium machine for sewing, quilting and embroidery
- A larger embroidery field than compact combination machines
- Advanced assistance for curved seams and difficult fabrics
- Wireless design transfer and mobile embroidery monitoring
- A substantial built-in library without relying entirely on purchased designs
- Local product advice, servicing and repair support
Consider a different setup if you need:
- Continuous commercial embroidery production
- Automatic multi-colour stitching without manual thread changes
- An embroidery field larger than 200 x 360mm
- Two machines that can sew and embroider at the same time
- A compact machine that is regularly packed away after use
Brother BX1 compared with the Celeste CX1 and CX1e
The BX1 is the combination model for buyers who want sewing, quilting and embroidery in one machine. By comparison, the Celeste CX1 is focused on sewing and quilting, while the Celeste CX1e is an embroidery-only machine. Separate machines can suit a busy studio because one machine can continue sewing while the other embroiders, but they require more space and a larger combined investment.
The BX1 is therefore the more streamlined choice for a home studio where versatility and space efficiency matter. If maximum sewing workspace, dedicated embroidery capacity or simultaneous operation is the priority, speak with Two Petals about comparing the complete Brother range.
Frequently asked questions
Is the Brother Expedition BX1 both a sewing and embroidery machine?
Yes. The BX1 is a combination machine for computerised sewing, quilting and single-needle hoop embroidery. The embroidery unit is attached when embroidering and removed when it is not required.
What is the largest embroidery size on the Brother BX1?
The maximum embroidery area is 200 x 360mm, approximately 8 x 14 inches. A design must fit within this field even if a larger item of fabric or clothing can be hooped.
Which embroidery hoops come with the BX1?
Published BX1 specifications list 130 x 180mm and 200 x 360mm frames. Australian package contents should always be checked on the product listing or confirmed with Two Petals before purchase.
How many sewing stitches and embroidery designs are built in?
The machine has 754 sewing stitches and 774 embroidery designs. It also includes 23 embroidery fonts, five sewing lettering fonts and 140 frame-pattern variations.
Can the BX1 embroider a jacket back?
Many jacket-back designs will fit within the 200 x 360mm field, but compatibility depends on the design dimensions, jacket construction and whether the area can be hooped or floated safely. Measure the intended placement and check the design size before purchasing or digitising it.
Can I load my own embroidery files?
Yes. Compatible embroidery files can be transferred by USB or through supported wireless software. The machine reads PES, PHC, DST and PEN embroidery data. Files must be correctly digitised and fit within the machine’s embroidery limits.
Does the BX1 work with Artspira?
Yes. The Brother BX1 is listed as Artspira compatible. A compatible mobile device, Brother account and wireless internet connection are required. Some designs and advanced functions may involve separate purchases or an Artspira+ subscription.
Can I monitor embroidery from my phone?
Yes. Brother’s My Stitch Monitor app can report embroidery progress and send notifications when the machine stops. The phone or tablet and the BX1 must be connected to the same wireless network.
Does the BX1 need a 5GHz Wi-Fi connection?
No. Brother specifies a 2.4GHz IEEE 802.11b/g/n wireless connection. It does not support enterprise WPA/WPA2/WPA3 network authentication, which may affect connection to some school or workplace networks.
Does Curve Sewing Mode sew the curve automatically?
No. You still guide and turn the fabric. Curve Sewing Mode changes presser-foot pressure to make controlled turning and smooth feeding easier; it does not follow a marked curve by itself.
Is the external guideline marker the same as the embroidery LED pointer?
No. The external guideline marker projects an adjustable line for sewing guidance. The embroidery foot’s LED pointer identifies a needle-drop or positioning point during embroidery setup.
Is a stitch regulator included?
A Brother Intelligent Stitch Regulator is not listed as a standard included BX1 feature. Confirm any optional regulator compatibility and required accessories with Two Petals before purchasing one.
Is the BX1 suitable for a small embroidery business?
It can suit personalised gifts, samples and modest home-studio production where sewing capability is also important. However, it remains a domestic single-needle machine. High-volume multi-colour production is generally better suited to a dedicated multi-needle embroidery machine.
How much table space does the BX1 need?
With the embroidery unit attached, the machine measures approximately 815mm wide. You will also need unobstructed space around the embroidery hoop so it can travel through its full stitching area without contacting a wall, shelf or nearby equipment.
Can Two Petals service the Brother BX1?
Two Petals is an authorised Brother dealer and service provider in Melbourne’s south-east, offering direct assistance, routine maintenance and repairs. Visit the Two Petals sewing-machine servicing page for service information.
Can I trade in my current sewing machine?
Trade-in eligibility depends on the model, age, condition and included accessories. Submit a request through the Two Petals sewing-machine trade-in page for an individual assessment.
Buy with local Brother support
A machine at this level is best chosen with attention to project type, embroidery size, workspace and accessory requirements. Two Petals can help you compare the BX1 with dedicated sewing, quilting and embroidery alternatives, check accessory compatibility and plan a setup that suits your creative space.
Explore the Brother Expedition BX1 or contact Two Petals in Pakenham for product guidance, servicing and ongoing local support.
